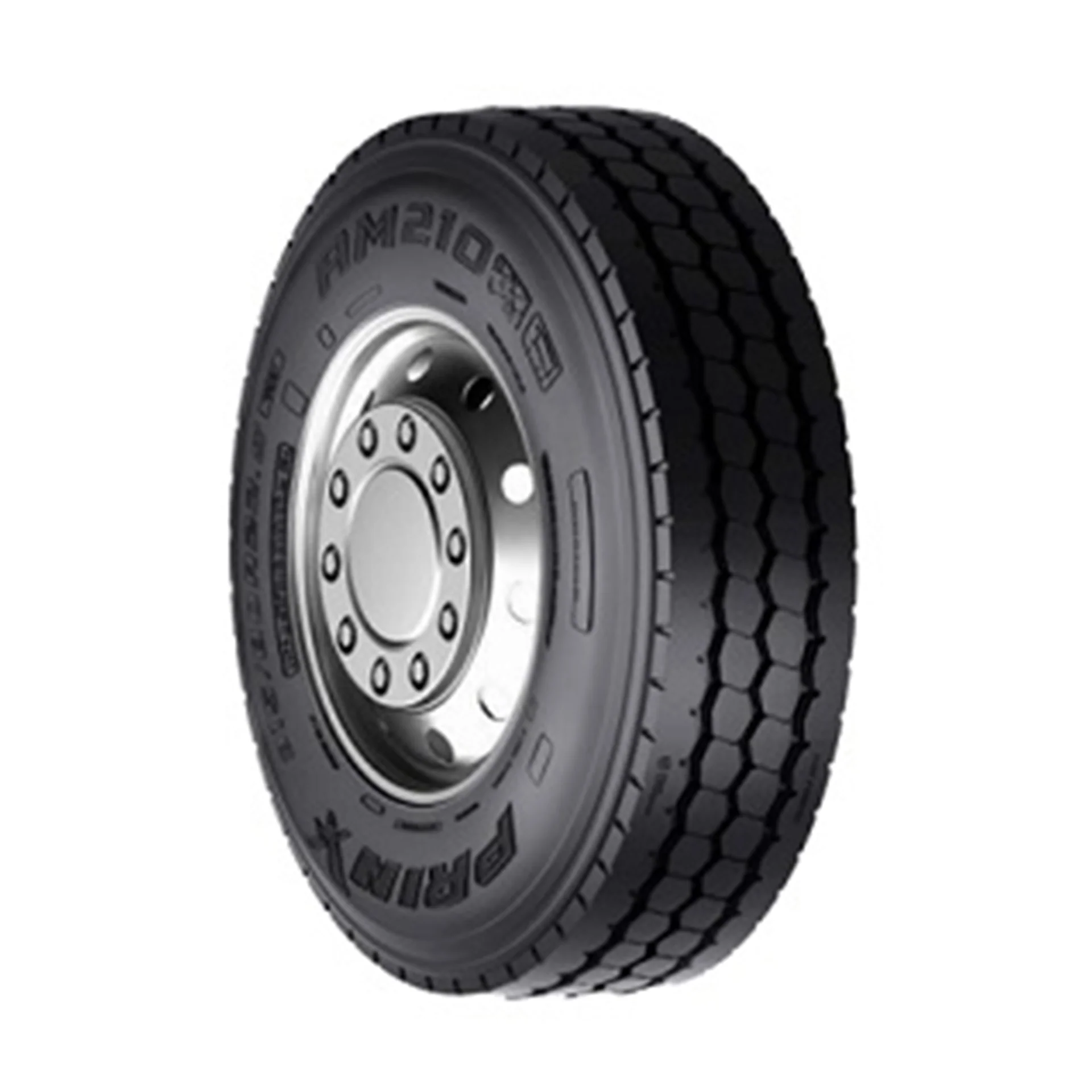

11R24.5 16PR H 149/146K Prinx AM210 All Position TL

MIXED SERVICE ALL-POSITION

AM210

Article # Size LR/PR Service

Description

T.D.

(x/32”) Type R.W.

(inch)

O.D.

(inch)

S.W.

(inch)

Single

Max Load

(lbs)

Dual

Max Load

(lbs)

Infl. P.

(psi)

2381250210 11R22.5 H/16 146/143K 24 TL 8.25 41.5 11.0 6610 6005 120

2571250210 275/70R22.5 J/18 148/145J 23 TL 8.25 37.7 10.9 6940 6395 130

2641250210 315/80R22.5 L/20 161/157K 24 TL 9.00 42.4 12.3 10200 9090 130

2391250210 11R24.5 H/16 149/146K 24 TL 8.25 43.5 11.0 7160 6610 120

The Prinx AM210 is a mixed service tire designed for on/off-road

usage. A cut- and chip-resistant compound provides protection from

tread tearing, impacts, and casing damage, while the deep tread

design provides additional traction and longer life.

Features & Benefits

• Advanced wear-resistant compound and optimal footprint to

reduce irregular wear

• Unique, modern tread design provides improved efficiency,

without sacrificing grip

• Zigzag-designed grooves improve traction while reducing stone

retention and drilling

Applications:

• Regional Trucks

• Dump Trucks

• Concrete Mix Trucks

• Refuse Trucks
